Date reviewed: April 2022 | Tested by: John Milbank | RRP: £119.99 | image4security.com

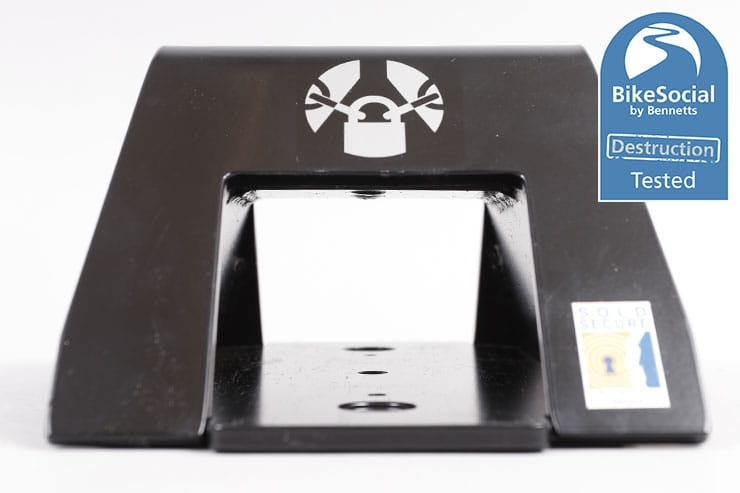

A motorcycle ground anchor needs to do two things: accommodate the largest chains, and be tougher to defeat than they are. The Apex Pro, which is designed and made in the UK by Image4Security, is tested to the toughest Sold Secure Ground Anchor Diamond standard (under its previous name of W’Anchor), which sees a five-minute attack with an angle grinder, tungsten-carbide-tipped drill bits and a 1.5m builder’s bar; it’s the toughest test carried out on motorbike security, and at the time of writing there are only two ground anchors that achieve it – this and the concrete-in Pragmasis Sub-Major.

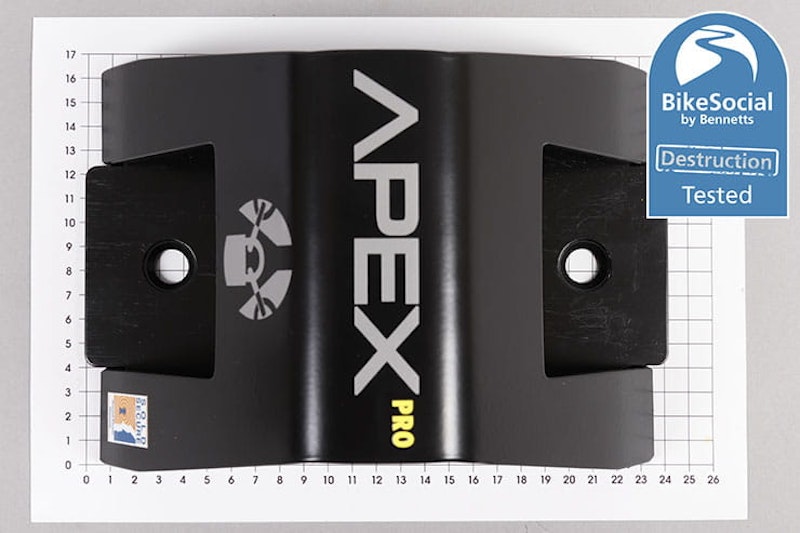

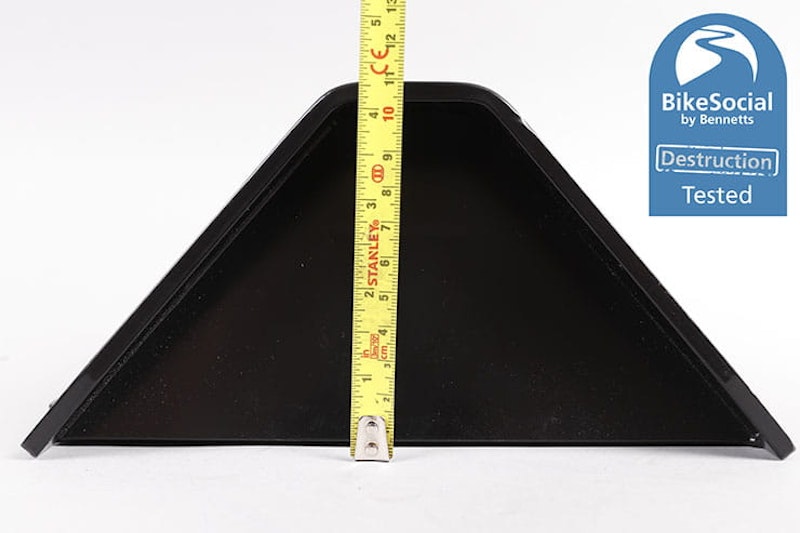

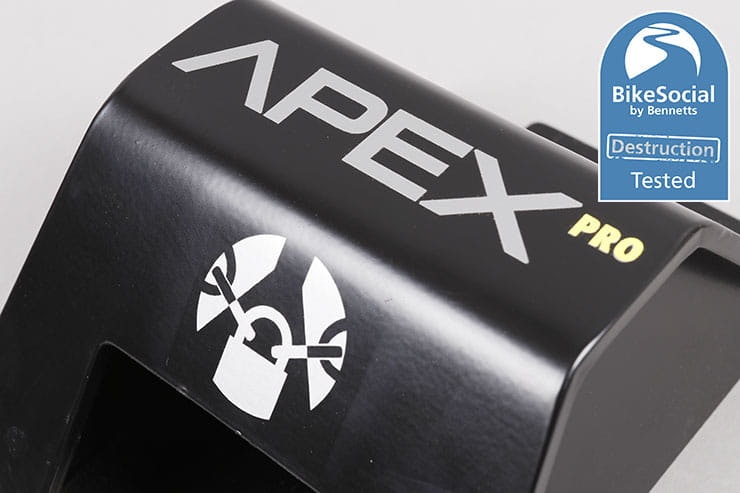

The Apex Pro Ground Anchor from Image4Security is made of 6mm-thick steel with a tough powder-coated finish (I measured it at 6.12-6.28mm). It stands 11cm tall, and covers a footprint of approximately 24x17cm.

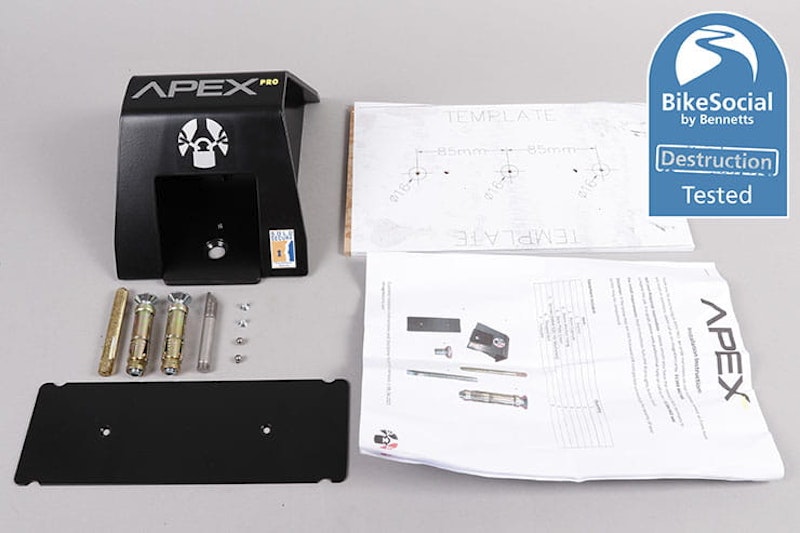

The anchor is supplied fitted to a wooden template with two small set-screws, though on one of our test samples these had both fallen out in transit; they were loose in the bag so check yours when unpacking as you’ll need them for the final stages of fitting.
To fit the Apex Pro to a concrete floor or strong brick wall, you’ll need a decent impact drill, 6mm and 16mm masonry bits, a hammer, 2.5mm and 6mm Allen keys, a set of mole-grips if you have access to them and something to blow out the holes that you drill. It’s a shame the larger drill bit isn’t supplied – while I did have one, not everybody will have a 16mm to hand, so budget a fiver for one if needs be.

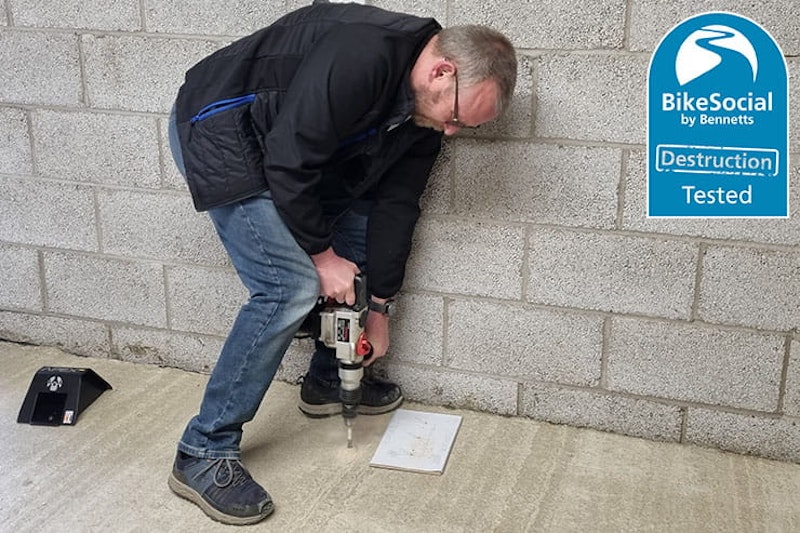

Depending on the floor, you might need a hefty drill; my mains Bosch was only any good for marking the initial holes; after that I had to use my old SDS drill (from Woolworths!). Large drills can be easily hired for a day if you need to, and many stores will sell drill bits too.

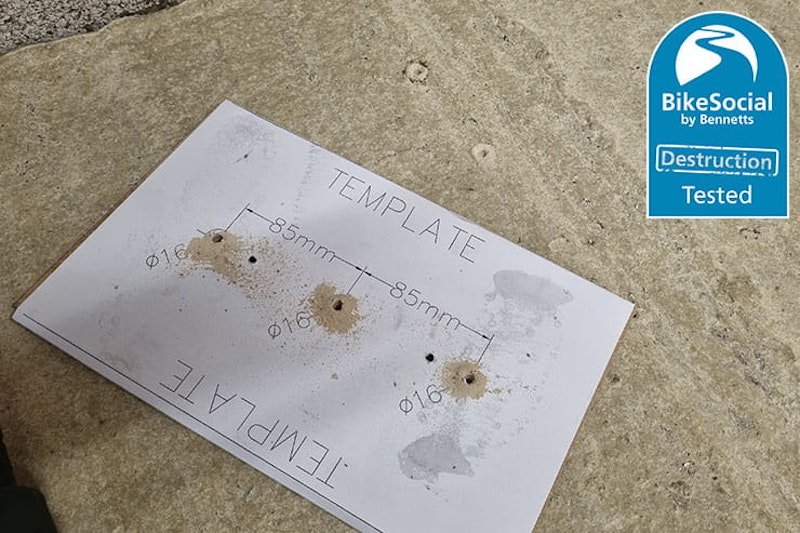

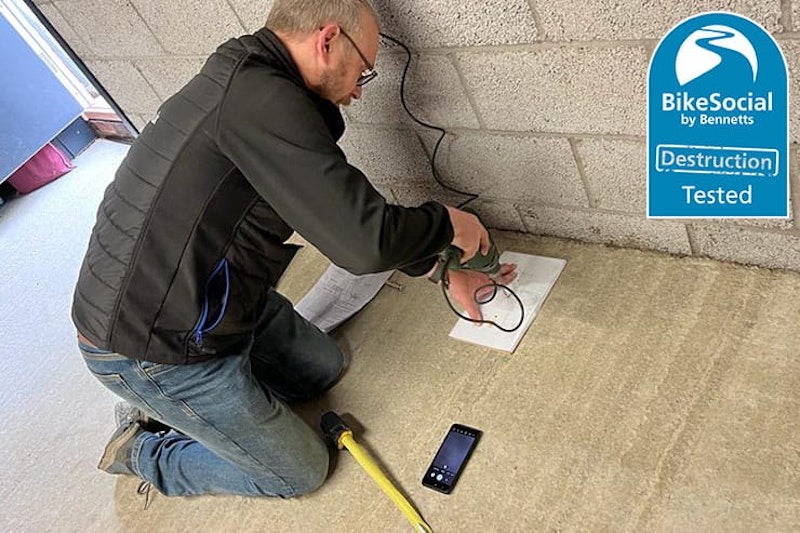

The supplied template makes marking the holes very easy (and it being on some thick hardboard helps even more); drill through with a 6mm (or smaller) bit and you’re set.

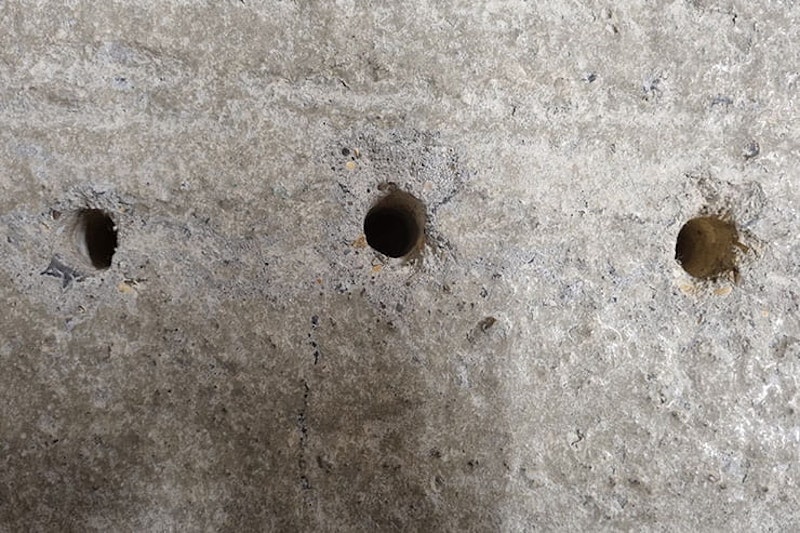

Next, open the holes up to 16mm, each with a depth of 80mm. Be careful that you don’t go too deep as a resin capsule is used for the centre fixing, which mustn’t go too far in.

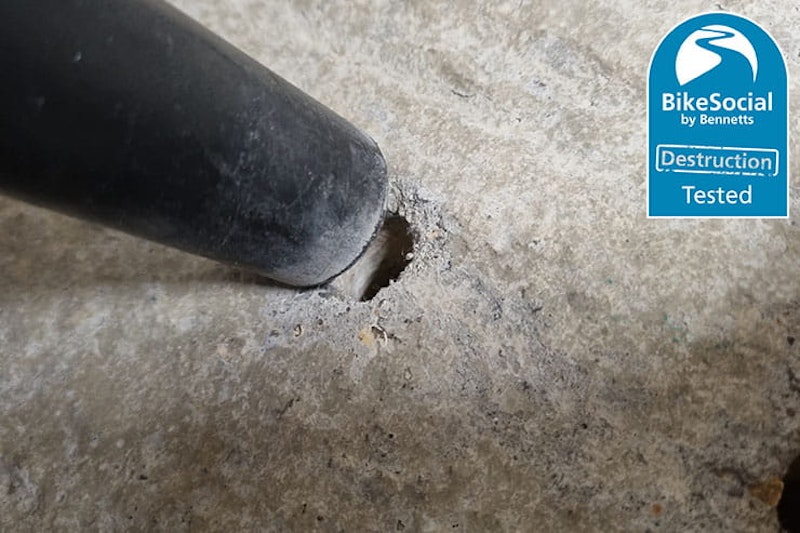

With the holes drilled out, blow them completely empty… be careful doing this as there’s a lot of dust inside; I used a workshop vacuum.

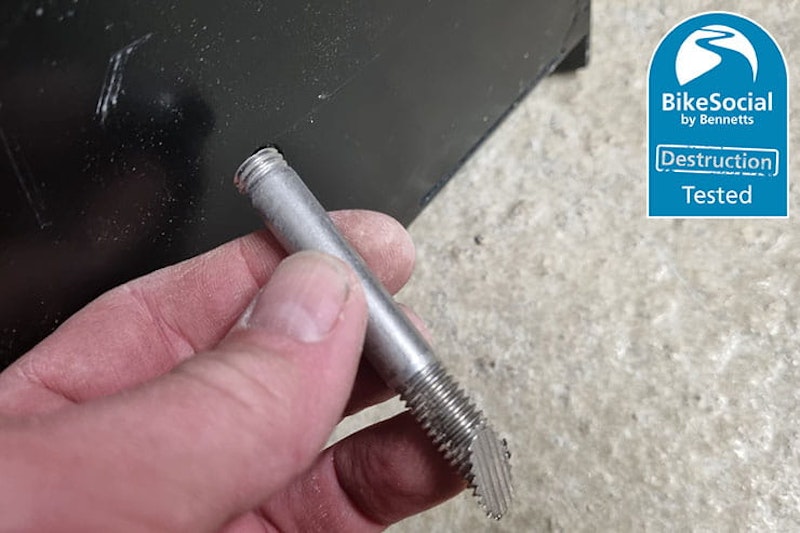

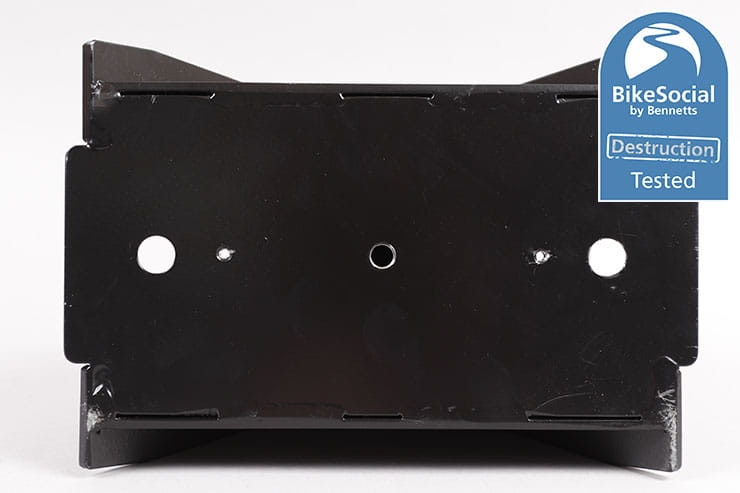

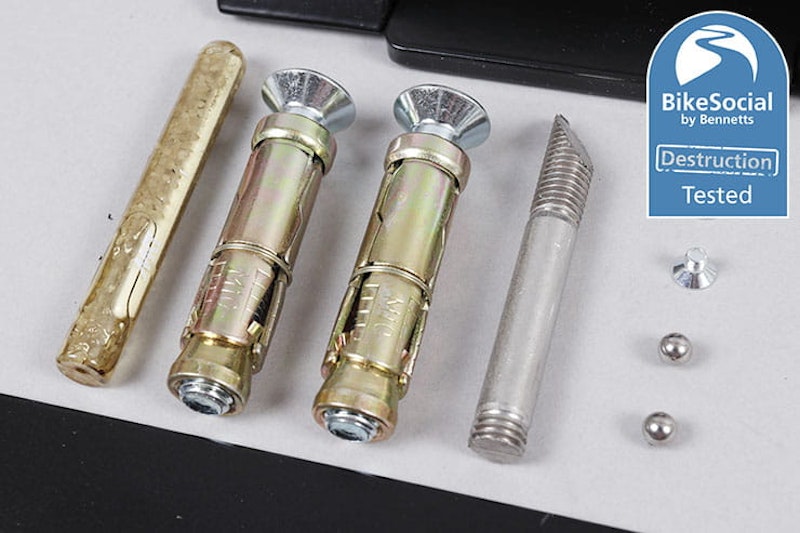

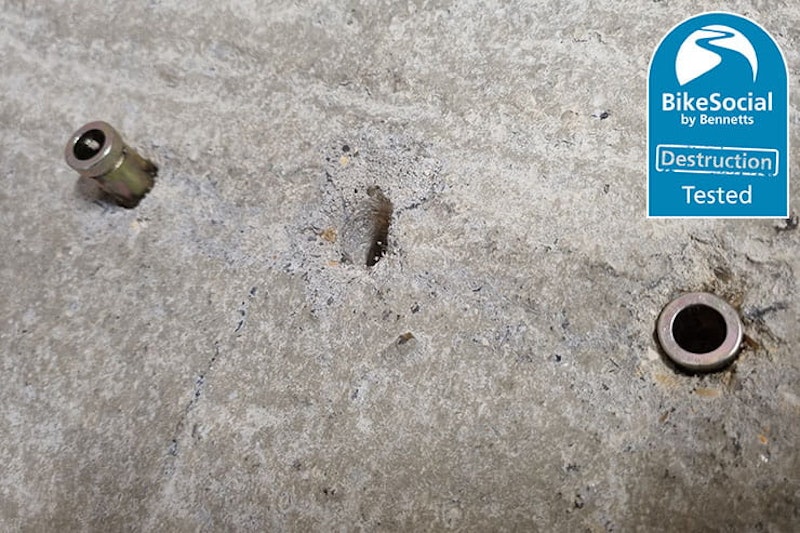

The Apex pro is secured using two expanding bolts and a resin capsule in the centre. My drilling wasn’t perfect, leaving the centre hole slightly out of line, but because the threaded fastener that goes here is smaller than the hole and bonds in with resin, there was enough play to easily line the two outer bolts up with the sleeves that are tapped in.

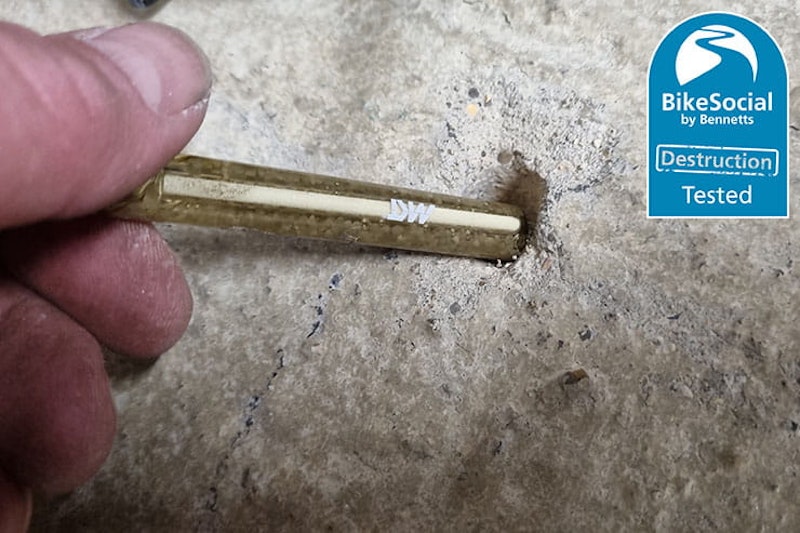

That central fastener works perfectly fine if just spun in by hand, but if you want to nip it up tighter, you’ll need a set of mole grips. Popping the anchor down breaks the glass capsule in the centre hole, then you rotate the Apex clockwise until it sits flush with the ground – this helps mix and spread the resin, which gives an incredibly tough fixing.

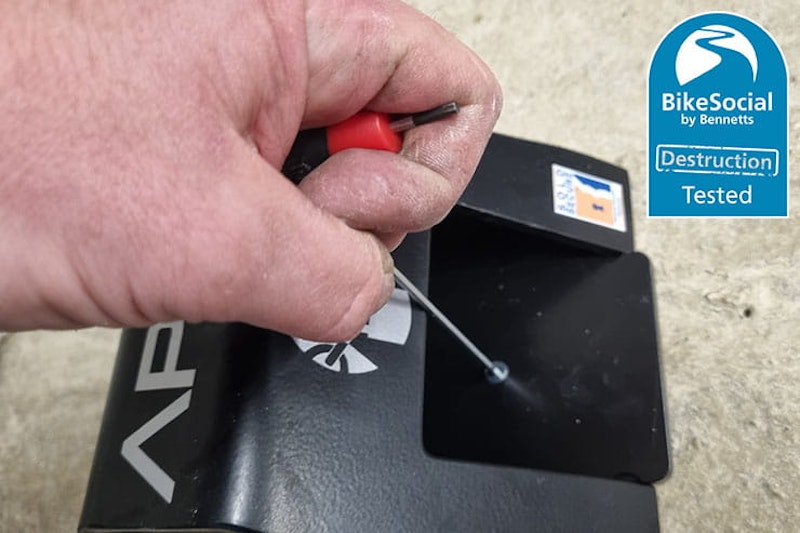

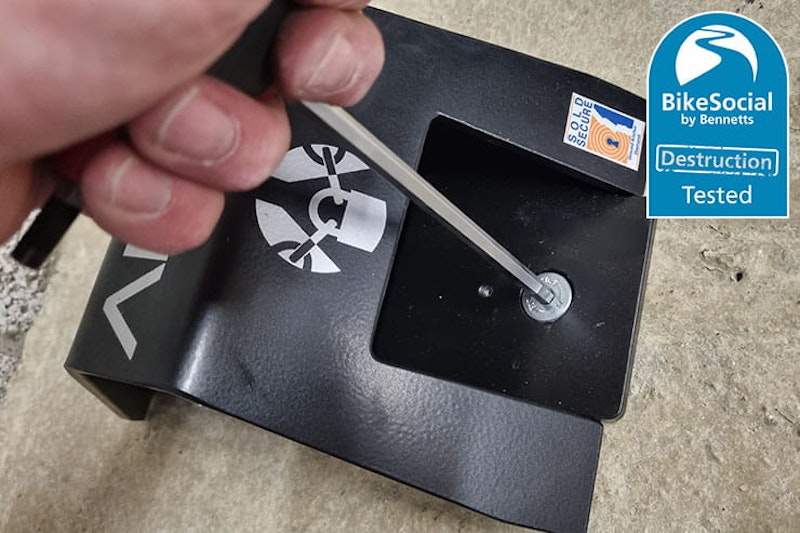

Then just pop the two outer bolts in and secure them with a 6mm Allen key, tap the ball bearings into the heads, and finally slide the cover plate in and secure that with the two small set screws.
It's actually fairly simple; most anchors use four bolts (one at each corner), and if these go into expanding sleeves your drilling has to be pretty accurate.

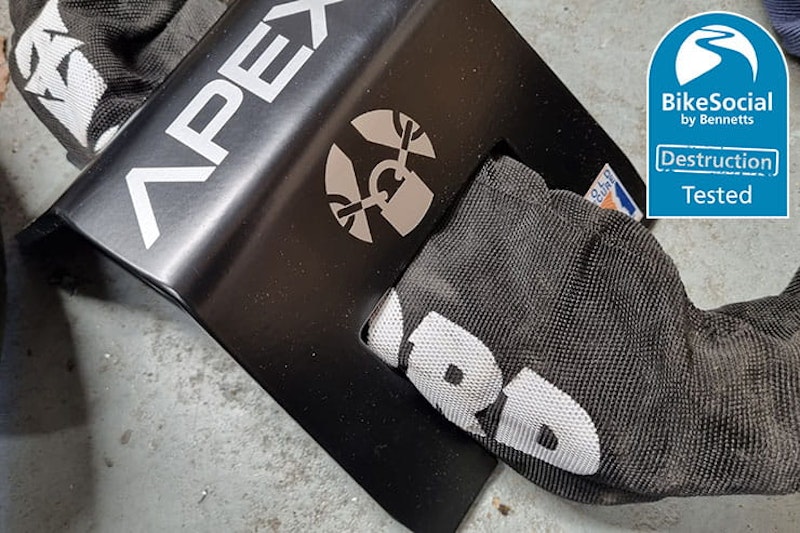

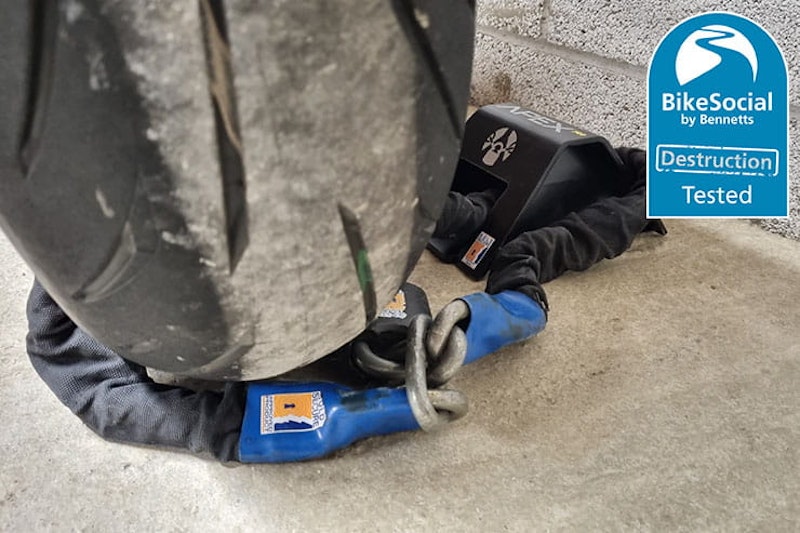

Most chains pass through fairly easily, but 22mm ones take a little more jiggling. Chances are if you have a chain that big, you’ll have this anchor somewhere you can leave the chain installed, so it’s not a problem.
For the best chains and locks to use with this ground anchor, read our reviews of the best motorcycle and scooter security.

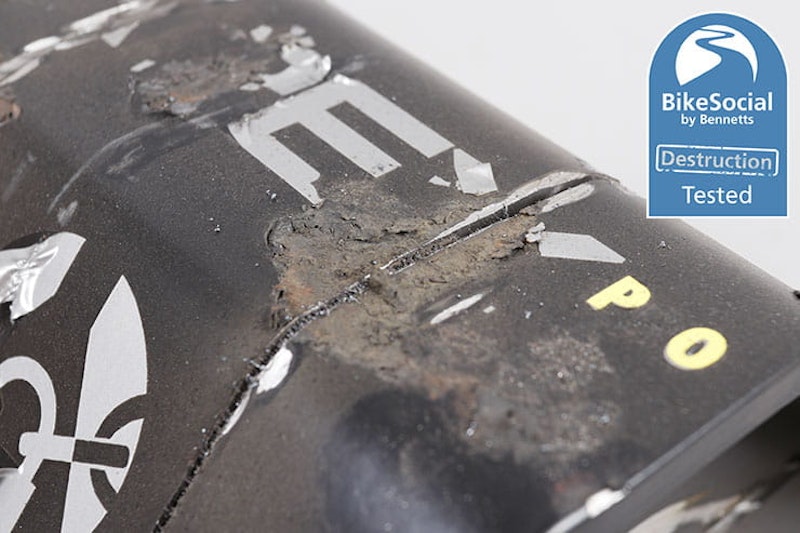

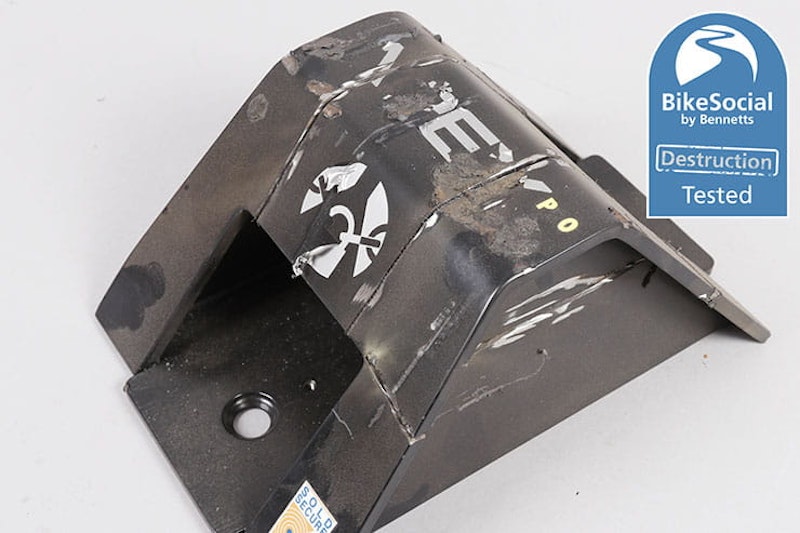

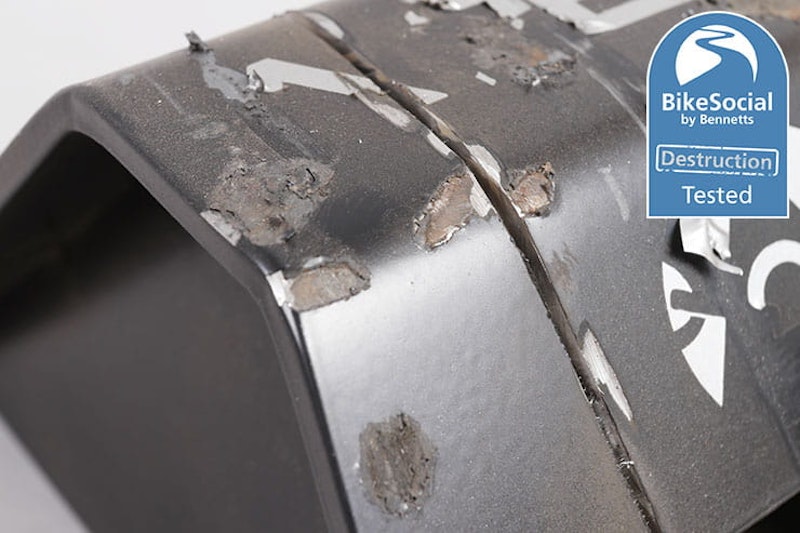

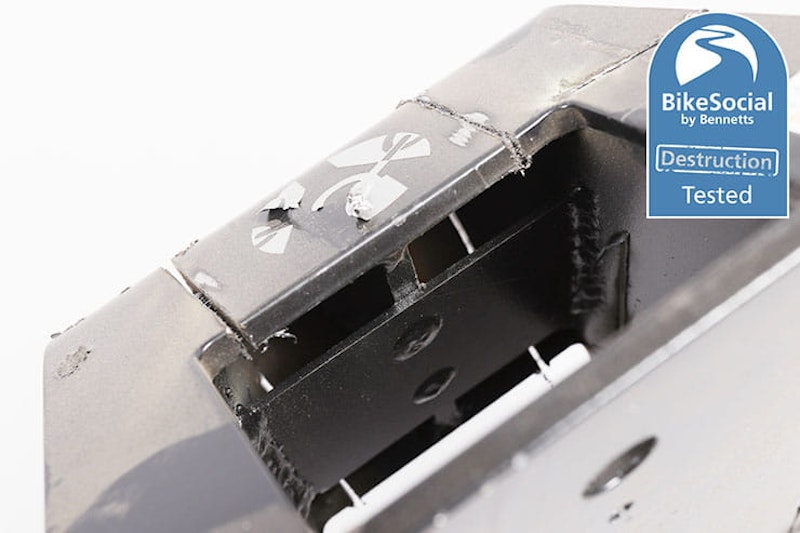

Given its Sold Secure Ground Anchor Diamond rating, it should come as no surprise that this is one tough bit of kit. A sledge hammer just bounces noisily off it, and whichever way I tried to attack it with the angle-grinder, I couldn’t get through.

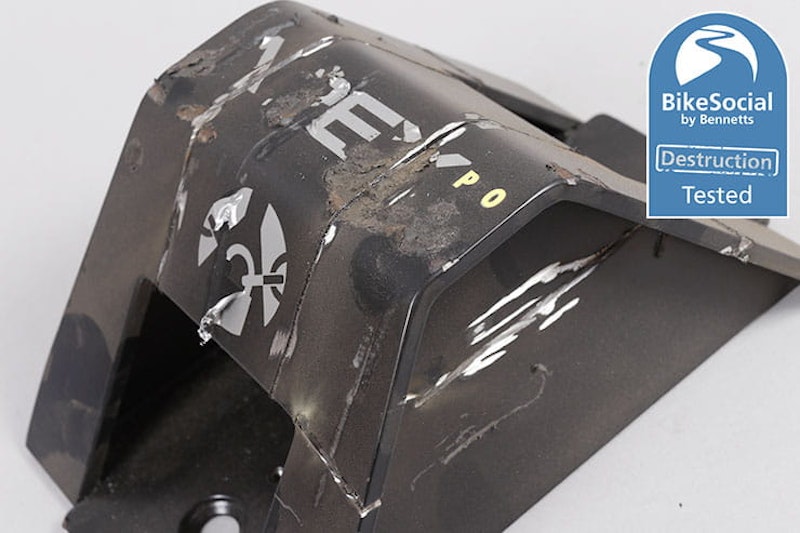

On the top, there’s a second plate set well below the upper, and the sides are recessed, making it harder to get purchase with a grinder.
Given enough time (and several cutting discs), a powerful grinder will eventually get through this as anything can be destroyed eventually, but it really is much, much harder than simply cutting the chain itself. It’s fair to say that the Apex Pro is the toughest-to-attack surface-mounted anchor I’ve come across.
To see how this compares with other ground anchors,check our reviews of the best garage and home security.
While I expect to see more ground anchors meeting Sold Secure’s relatively new, and toughest standard, they’ll still be few and far between so here are five options for different needs…

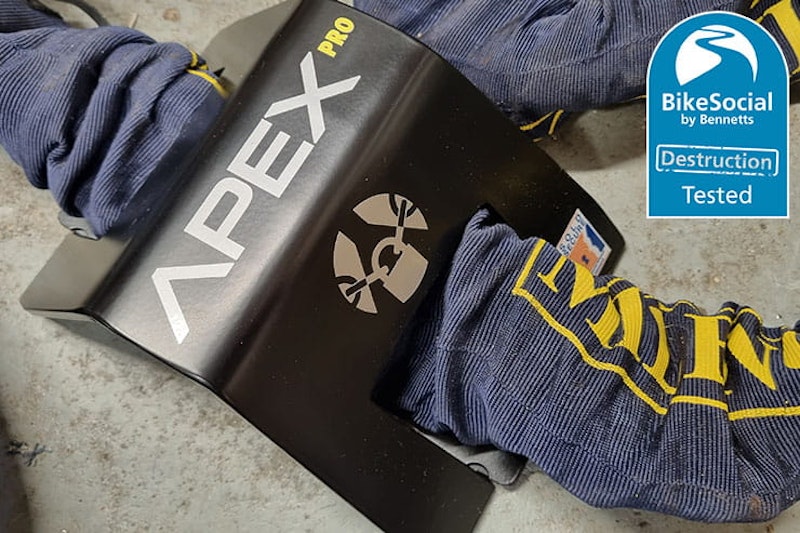

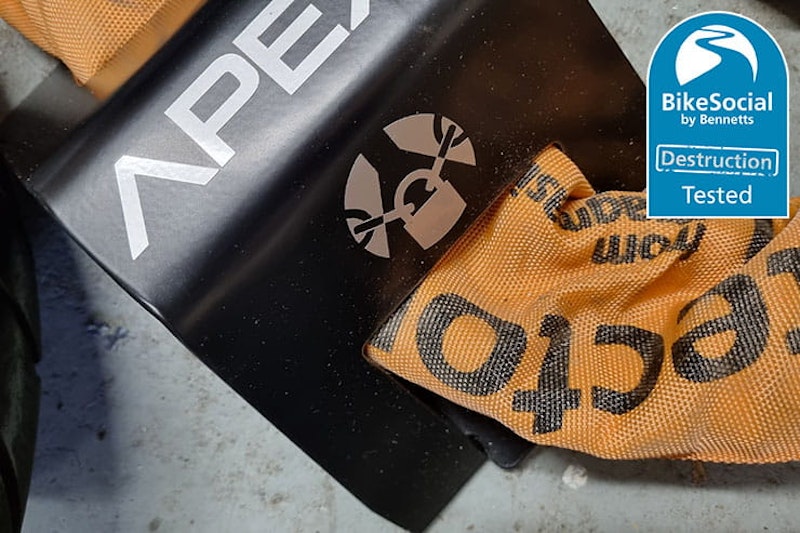

The Milenco, Oxford and Pragmasis 22mm chains I tested all fit the Apex Pro
The Apex Pro from Image4Security is currently the only surface-mounted device to meet the most extreme Sold Secure Ground Anchor Diamond standard, making it the toughest out there that doesn’t need to be buried underground.
All an anchor really needs to do is be stronger than the chain inside it, but as the provably toughest device you can fit without digging a hole, the Apex Pro is an excellent design that’s fairly easy to fit and so comes thoroughly recommended.
