Official: Honda CB125R is the sports naked for new riders | EICMA 2017

John Milbank, BikeSocial Consumer Editor
By John Milbank
BikingMilbank BikeSocial Consumer Editor, John owns a BMW S1000XR, Honda Grom and a 1999 Kawasaki ZX-6R. He's as happy tinkering in the workshop as he is on twisty backroads, and loves every bike ever built (except one). He's bought three CBR600s, a KTM 1050 Adventure, Yamaha MT-10, two Ducati Monsters, several winter hacks, three off-roaders, a supermoto pit bike, a Honda Vision 50 and built his own custom XSR700.

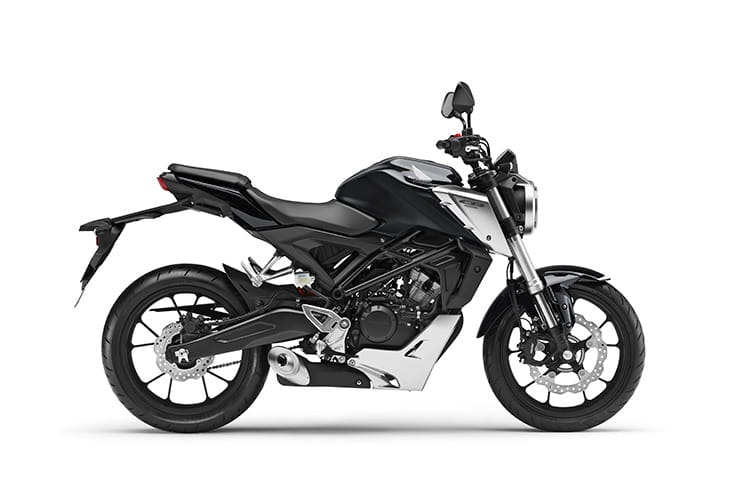

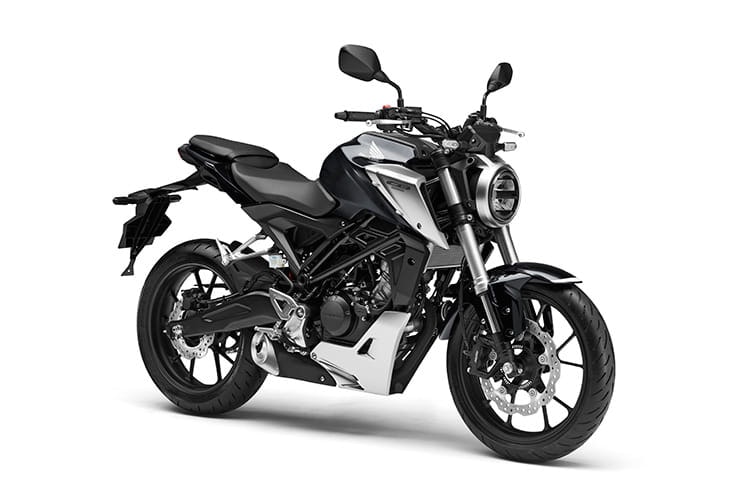

Described as a stripped-back entry-level sports-naked, the Honda CB125R echoes the ‘Neo Sports Café’ styling of the new CB1000R, but weighs just 125.8kg, ready to ride.

The liquid-cooled SOHC single-cylinder motor is said to be free-revving with ‘strong low to mid-range acceleration’, with a ‘unique presence aimed to engage and inspire young riders.’ It puts out 13.1bhp (9.8kW) @ 10,000rpm and 7.3lb-ft (10Nm) @ 8000rpm through a six-speed gearbox for a claimed 0-50mph time of 11.4seconds.

The all-new tubular steel lattice frame has a ‘tuned rigidity balance’ for feedback; the swing-arm and its pivot plates are pressed steel, and combine with 41mm upside-down forks and a preload adjustable shock.

The front brake is a Nissin four-piston radial caliper with a hubless 296mm floating disc (it’s fixed further out on the wheel, rather than at the hub), while the rear sees a single-piston biting a 220mm disc. Interestingly, the ABS – which works on the front and rear – uses an inertial measurement unit (IMU), claimed to give precise front to rear modulation of the anti-lock system.

The aluminium fat bar-style handlebars, fixed via risers to the top yoke, give 40° of rotation for a 2.3m turning circle, while the seat is set at 816mm.

The LCD dash is just 23.5mm thick, and shows speed, revs, fuel level and gear, with full LED lighting across the whole bike; the split headlight is the thinnest ever fitted to a Honda motorcycle.

Fuel economy is claimed to be 136.7mpg, which means the 10.1 litre tank could offer a range of up to 298miles.



SPECIFICATION: 2018 Honda CB125R



Engine

Liquid-cooled 4-stroke 2-valve SOHC single cylinder

Engine Displacement (cm³)

125cc

No. of Valves per Cylinder

2

Bore and Stroke (mm)

58mm x 47.2mm

Compression Ratio

11.0:1

Max. Power Output

13.1bhp (9.8kW) @ 10,000rpm

Max. Torque

7.3lb-ft (10Nm) @ 8000rpm

Oil Capacity

1.3L

Carburation

PGM-FI electronic fuel injection

Fuel Tank Capacity

10.1L

Fuel Consumption

136.7 mpg (WMTC Mode)

Starter

Electric

Battery Capacity

YTZ6V 12V 5Ah MF

ACG Output

250W/5000rpm

Clutch Type

Wet, multiplate with coil springs

Transmission Type

6-speed

Final Drive

O-ring sealed chain

Frame

Inner Pivot Diamond Frame

Dimensions (LxWxH)

2015mm x 820mm x 1055mm

Wheelbase

1345mm

Caster Angle

24.2º

Trail

90.2mm

Seat Height

816mm

Ground Clearance

140mm

Kerb Weight

126kg

Turning radius

2.3m

Front suspension

41mm telescopic inverted fork

Rear suspension

Single-damper

Rim Size Front

17M/C x MT3.00

Rim Size Rear

17M/C x MT4.00

Tyres Front

110/70R17M/C 54H

Tyres Rear

150/60R17M/C 66H

ABS System Type

Front & rear independent ABS with IMU

Instruments

LCD Display

Headlight

Lo:13W Hi: 8.8W (LED)

Taillight

Stop: 2.5W Tail: 0.4W (LED)
