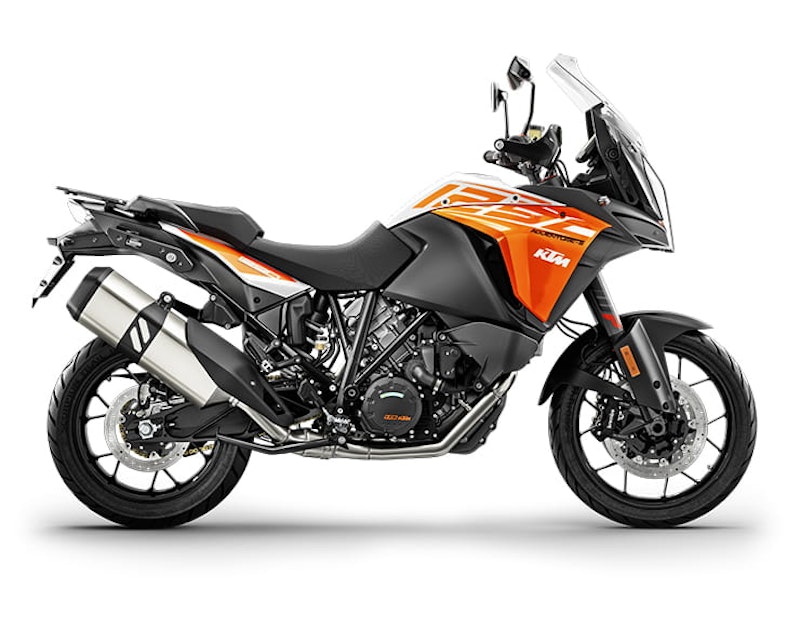

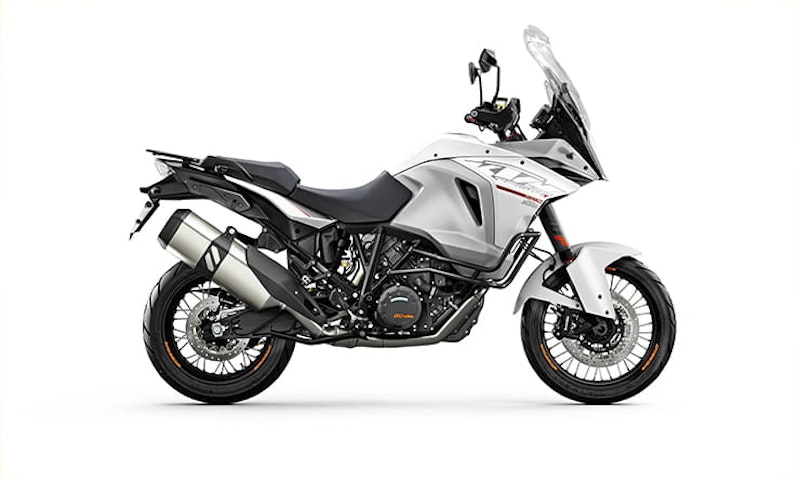

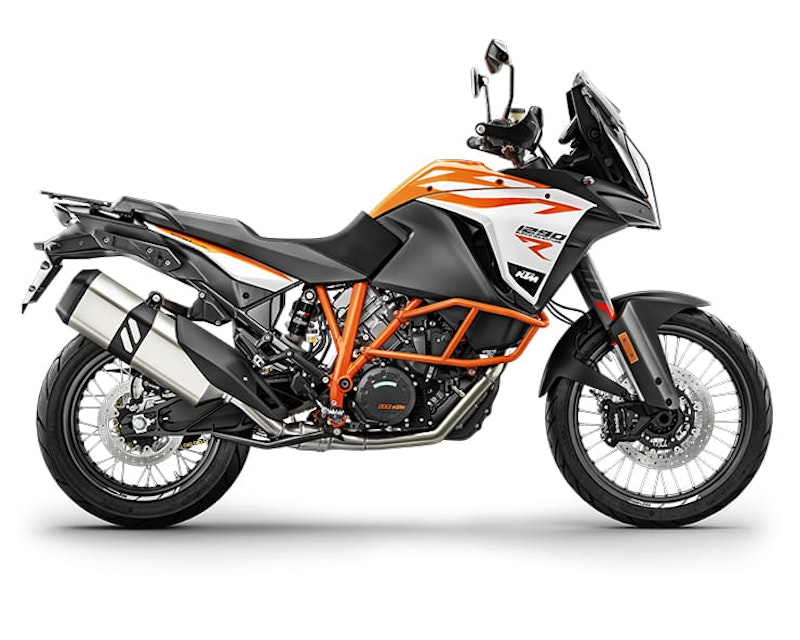

| 1290 SUPER ADVENTURE S | 1290 SUPER ADVENTURE R | 1290 SUPER ADVENTURE T |
| | | |
| Engine | | | |
| Engine type | 2-cylinder, 4-stroke, V 75° | 2-cylinder, 4-stroke, V 75° | 2-cylinder, 4-stroke, V 75° |
| Displacement | 1,301 cc | 1,301 cc | 1,301 cc |
| Bore/Stroke | 108/71 mm | 108/71 mm | 108/71 mm |
| Power | 118 kW (160 hp) @ 8,750 rpm | 118 kW (160 hp) @ 8,750 rpm | 118 kW (160 hp) @ 8,750 rpm |
| Torque | 140 Nm @ 6,750 rpm | 140 Nm @ 6,750 rpm | 140 Nm @ 6,750 rpm |
| Compression ratio | 13.1:1 | 13.1:1 | 13.1:1 |
| Starter/battery | E-starter/12V 11.2 Ah | E-starter/12V 11.2 Ah | E-starter/12V 11.2 Ah |
| Transmission | 6 gears | 6 gears | 6 gears |
| Fuel system | Keihin EFI (throttle body 52 mm) | Keihin EFI (throttle body 52 mm) | Keihin EFI (throttle body 52 mm) |
| Control | 4 V/DOHC | 4 V/DOHC | 4 V/DOHC |
| Lubrication | Pressure lubrication with 3 Eaton pumps | Pressure lubrication with 3 Eaton pumps | Pressure lubrication with 3 Eaton pumps |
| Engine oil | Motorex, SAE 10W-50 | Motorex, SAE 10W-50 | Motorex, SAE 10W-50 |
| Primary drive | 40:76 | 40:76 | 40:76 |
| Final drive | 17:42 | 17:42 | 17:42 |
| Cooling | Liquid cooling | Liquid cooling | Liquid cooling |
| Clutch | PASCTM slipper clutch, hydraulically operated | PASCTM slipper clutch, hydraulically operated | PASCTM slipper clutch, hydraulically operated |
| Engine management | Keihin EMS with RBW and cruise control, double ignition | Keihin EMS with RBW and cruise control, double ignition | Keihin EMS with RBW and cruise control, double ignition |
| Traction contol | MTC (4-Mode, disengageable) | MTC (4-Mode, disengageable) | MTC (4-Mode, disengageable) |
| | | |
| Chassis | | | |
| Frame | Chromium-Molybdenum-Steel trellis frame, powder coated | Chromium-Molybdenum-Steel trellis frame, powder coated | Chromium-Molybdenum-Steel trellis frame, powder coated |
| Subframe | Aluminum, powder coated | Aluminum, powder coated | Aluminum, powder coated |
| Handlebar | Aluminum, tapered, Ø 28/22 mm | Aluminum, tapered, Ø 28/22 mm | Aluminum, tapered, Ø 28/22 mm |
| Front suspension | WP Semi-active Suspension USD Ø 48 mm | WP-USD Ø 48 mm | WP Semi-active Suspension USD Ø 48 mm |
| Rear suspension | WP Semi-active Suspension shock absorber | WP PDS shock absorber | WP Semi-active Suspension shock absorber |
| Suspension travel front/rear | 200/200 mm | 200/220 mm | 200/200 mm |
| Front brake | 2 x Brembo four piston, radially mounted caliper, brake disc Ø 320 mm | 2 x Brembo four piston, radially mounted caliper, brake disc Ø 320 mm | 2 x Brembo four piston, radially mounted caliper, brake disc Ø 320 mm |
| Rear brake | Brembo two piston, fixed caliper, brake disc Ø 267 mm | Brembo two piston, fixed caliper, brake disc Ø 267 mm | Brembo two piston, fixed caliper, brake disc Ø 267 mm |
| ABS | Bosch 9ME Combined-ABS (incl. Cornering-ABS and offroad mode, disenengageable) | Bosch 9ME Combined-ABS (incl. Cornering-ABS and offroad mode, disenengageable) | Bosch 9ME Combined-ABS (incl. Cornering-ABS and offroad mode, disenengageable) |
| Wheels front/rear | Cast aluminum wheels 3.50 x 19"; 5.00 x 17" | Spoked wheels with aluminum tubeless rims 2.50 x 21"; 4.50 x 18" | Spoked wheels with aluminum tubeless rims 3.50 x 19"; 5.00 x 17" |
| Tyres front/rear | 120/70 R 19; 170/60 R 17 | 90/90 21; 150/70 R 18 | 120/70 R 19; 170/60 R 17 |
| Chain | X-Ring 5/8 x 5/16" | X-Ring 5/8 x 5/16" | X-Ring 5/8 x 5/16" |
| Silencer | Stainless steel silencer with regulated catalytic converter | Stainless steel silencer with regulated catalytic converter | Stainless steel silencer with regulated catalytic converter |
| Steering head angle | 64° | 64° | 64° |
| Trail | 120 mm | 123 mm | 120 mm |
| Wheelbase | 1,560 ± 15 mm | 1,580 ± 15 mm | 1,560 ± 15 mm |
| Ground clearance | 220 mm | 250 mm | 220 mm |
| Seat height | 860/875 mm | 890mm | 860/875 mm |
| Fuel capacity | approx. 23 litres/3.5 litres reserve | approx. 23 litres/3.5 litres reserve | approx. 30 litres/4 litres reserve |
| Dry weight | approx. 215 kg | approx. 216 kg | approx. 222 kg |
| Weight (ready to ride) | approx. 222 kg (without fuel) | approx. 224 kg (without fuel) | approx. 229 kg (without fuel) |
| Weight (full fuel) | approx. 238 kg | approx. 240 kg | approx. 249 kg |
