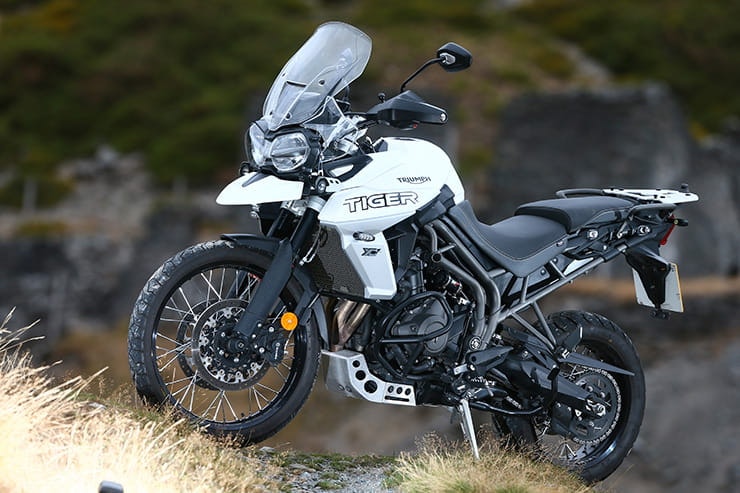

New clocks, six-mode TC electronics, tweaked riding position and engine response for 2018, the Tiger 800 XCa is the most off-road of the 800 Tigers and comes with a long list of extras including wire wheels, bash plate, hand guards, heated seats and grips, cruise control, centrestand and adjustable screen – all designed to make life as comfortable off the road as on it.



Triumph Tiger 800 XCa (2018) | UK Road and Off Road Review

Full UK road test of the 2018 Triumph Tiger 800 XCa…with a little bit of off-road too | BikeSocial



Price

The Triumph Tiger 800 range hosts six models; the XR range is those with more of a road focus hence the cast wheels with the XR starting from £9,100, while the XC range has the wire-spoke wheels among its differences, and it sets off from £11,250. We were testing the XCa model which is available from £12,450 otr and is available in three colours: Korosi Red, Marine and this…Crystal White.



Power and torque

The engine spec of the Tiger 800 XCa – same as all 2018 800 Tigers – is an easy read: inline 800cc triple making the required 94bhp at 9500rpm (as much as it can and still be restricted for A2 licence holders, should they so wish, ahem) and 58 lb.ft of torque.

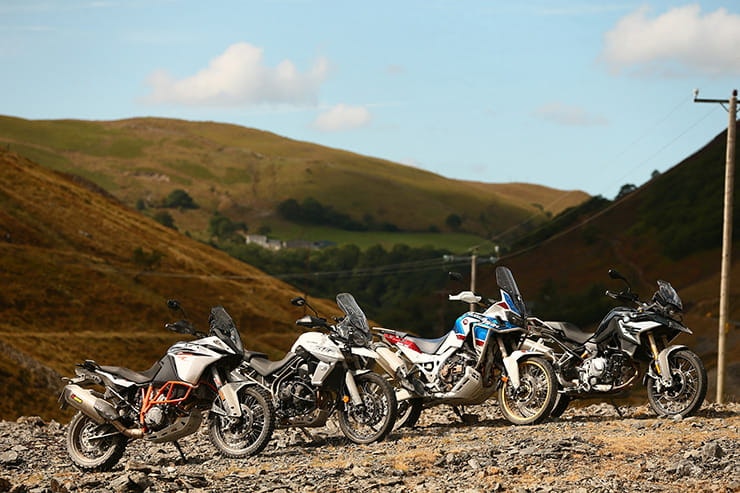

Potential Tiger 800 owners comparing the Triumph to parallel twin rivals from Honda and BMW will note this is less torque than the Africa Twin or F850GS. That’s because smaller engines are less torquey, and the 800cc triple is 53cc smaller than the Beemer and 198cc down on the Honda. So, in order to achieve the same equivalent peak power as them, the Triumph is tuned to rev harder (because power = torque x revs/5252). It peaks at 9500rpm, 2000rpm higher than the Honda and 1250rpm up on the BMW.



Triumph Tiger 800 XCa (2018) | UK Road and Off Road Review



Engine, gearbox and exhaust

And the above is why the Tiger feels the way it feels: it’s a peakier, revvier top-end rush than its competitors and delivers less chuggable, thumping bottom-end punch. On the road this doesn’t matter so much – if you’re cool with the conventional power delivery of an inline multi, on tarmac the Tiger’s smooth climb up its three-cylinder rev range is a high-spinning pleasure and its relative lack of low-down shove isn’t missed. You just stomp on the lever and keep it on the boil. Or on the motorway, when you just want to ignore an engine and focus on staying awake, the inline triple is less thudingly intrusive than a twin.

It won’t snap out of corners like a twin; the Tiger howls out of them instead – although with its extremely loud gear-drive whine overcoming even the new, supposedly louder, exhaust note, when you cane the triple it’s strangely reminiscent of the straight-cut gear transmission whistle inside a rally car (this might be something to do with the engine changes for 2018 – thanks to low-down fuelling improvements, Triumph have been able to shave inertial damping mass from the drivetrain; specifically lightening the crank and flywheel, and removing backlash gears from the balancer drive and transmission. It ought to make the engine mechanically quieter, but this one sounds like it’s got Colin McRae’s nuts trapped under the tank).

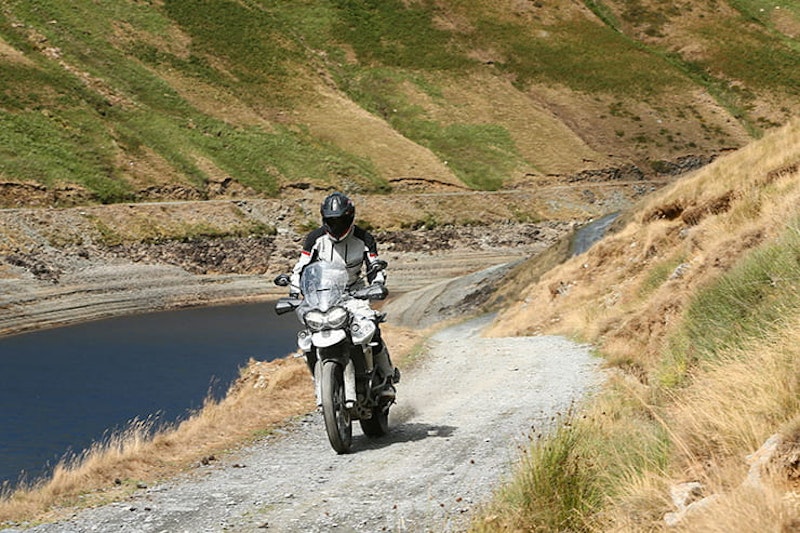

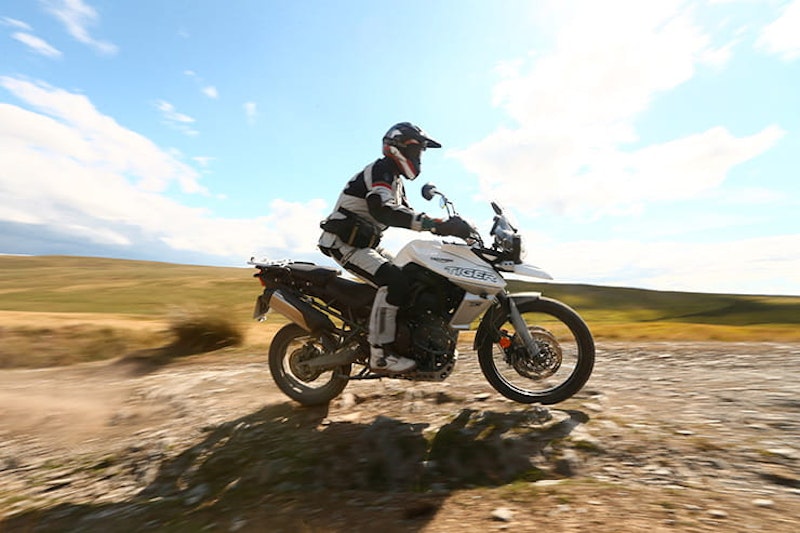

But the flipside of this comparative top-endiness means the Tiger motor isn’t as tractable off-road as a parallel twin or V-twin. It’s an engine designed and tuned to operate as a conventional road-going motor rather then a mud-plugger. On road-biased dual-purpose tyres, when you want it to just keep plodding forward up some slime-infested hillside on tickover, the Tiger will often spin up or even just stall – despite its choice of two off-road riding modes (one of which reduces ABS and TC, the other cuts them completely).



Triumph Tiger 800 XCa (2018) | UK Road and Off Road Review



Economy

A strange beast; at worst, ridden like an ass, the Tiger drains its tank low enough to send the rider scuttling for a filling station in as few as 140 miles. But when the rider’s feeling less throttle-happy – which isn’t often, to be fair – the Tiger stretches it out to over 180 miles. That’s a big difference, but as well as clumsy throttle use it might be also down to our efficiency topping the tank – with a centrestand as standard on the XCa, you have the option of squeezing a bit more in with the bike upright. Having said that, the Tiger’s not the easiest bike to haul onto its stand, so it’s not always worth the bother.
Of course, all conversations about tank range could be rendered irrelevant if the Tiger had an African twin-sized 25-litre tank – but the engine’s relative height (it’s tall) means there’s no easy way to balance all that weight even higher; that would require a new design of compact powerplant. Cue the next generation Hinckley triple, surely coming to an adventure bike near you within the next few years. But not yet, so we all have to ride more frugally.

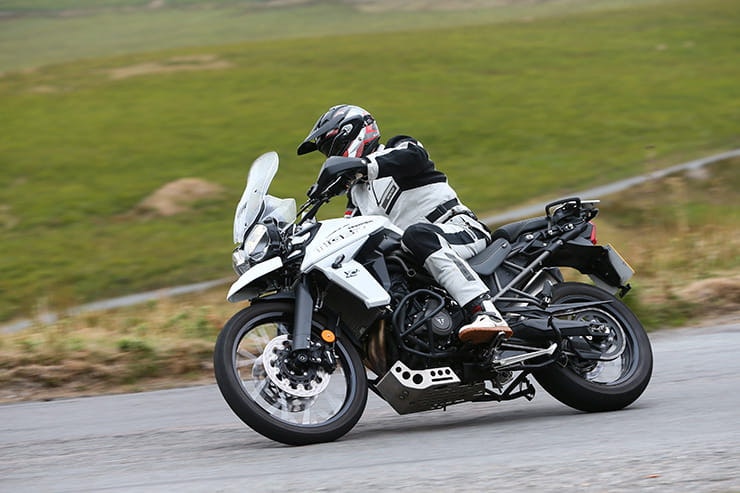

Handling, suspension, chassis and weight

Triumph is always keen to emphasise what it considers a default Hinckley characteristic, whether you’re riding a Rocket III or a Daytona 675 (I nearly said 765 and gave the game away then) – they all have neutral handling and suspension balance; steering is always agile and vice-free yet stable, springs are always set-up with a poise and parity between front and rear. Now, you might think this is a given, but there are plenty of new bikes that steer like overloaded busses, some that bounce around on over-soft springs and some that chop about like a startled butcher.

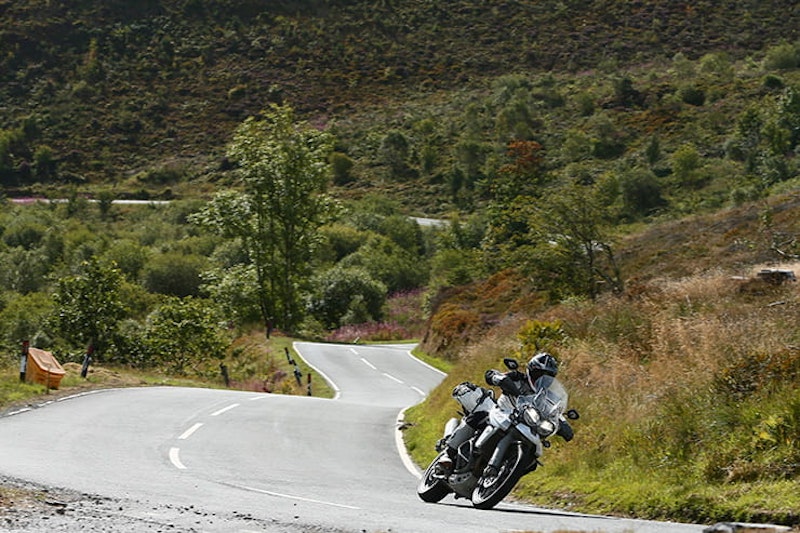

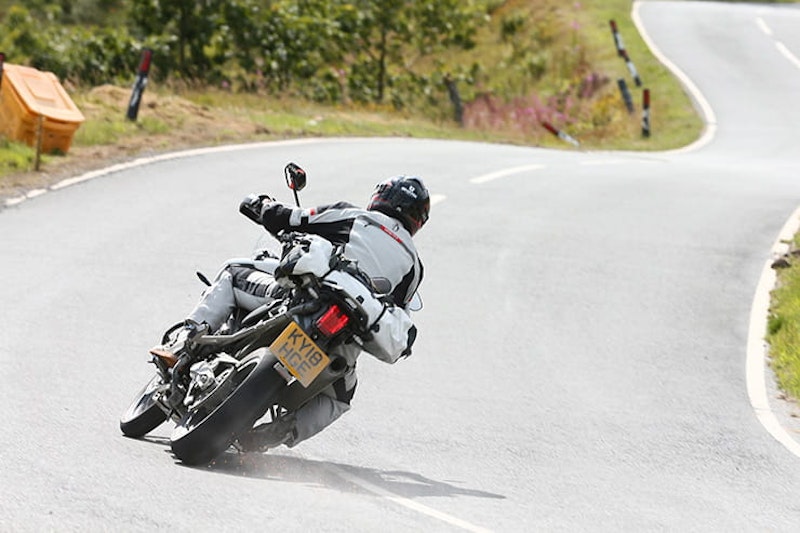

The Tiger, on semi-adjustable WP suspension forks and semi-adjustable WP rear purchased at great cost, no doubt, from owners KTM, is another great-handling Triumph. On its Bridgestone Battle Wings it quickly builds fantastic confidence on the road, without the dramatic rear-to-front weight transfer on the brakes that can upset adventure-style bikes and leave the front end feeling vague, ready to wash out as you turn in. There’s no wishy-washiness here. Peg-scraping angles are a few enthusiastic corners away, and pinning the gas on exits has the rear digging in like a truffle hog. You can get away with murder.
Triumph claim 229kg wet through for the Tiger 800, which is about right for the class – it’s no fly-weight and bikes like KTM’s 1090 R, which is supposed to be the same weight, somehow feels lighter.
But again, it’s that road bias – who wants an over-light adventure bike you’re thinking of taking long distance? You want the confidence of solidity, allied to easy handling. And that’s what the Tiger delivers.







Brakes

In a change over the 2017 Tiger 800’s Nissin calipers, the 2018 Tiger 800 gets a pair of Brembos instead – still only two-pot sliding, not opposed four pots; but then on a skinny 21-in front it’d be easy to overwhelm the tyre. As it is, the Tiger stops superbly, burying its nose the required amount.



Comfort

This is where the Tiger 800 shows a clean pair of ergonomic heels to rivals. Seat height is lowest in class, so it’s the most manageable (especially compared to the lofty, alienating Africa Twin). The seat is also wide and supportive (not always a Tiger 800 strong point; the first incarnation of the bike was like riding on a sponge), adjustable from 840mm to 860mm. The pegs – great big off-road aluminium things – are low so there are many acres of leg room. The bars are set back by 10mm for 2018, which drops them more into the rider’s lap. And the new screen is five-way adjustable (simple but effective spring-loaded mechanism) and works very well with, with added side deflectors meaning hardly any buffeting of head or shoulders. Just how much effort Triumph have put into the screen alone can be seen comparing it the perspex afterthoughts of the F850 GS, Africa Twin and KTM 1090.

Proof of the Tiger’s sound ergonomics comes after a 200-mile ride – if you’re on the KTM 1090 R, BMW F850 GS or Africa Twin, you’ll be stretching, lifting a cheek off, generally fidgeting a bit. Not on the Tiger.





Equipment

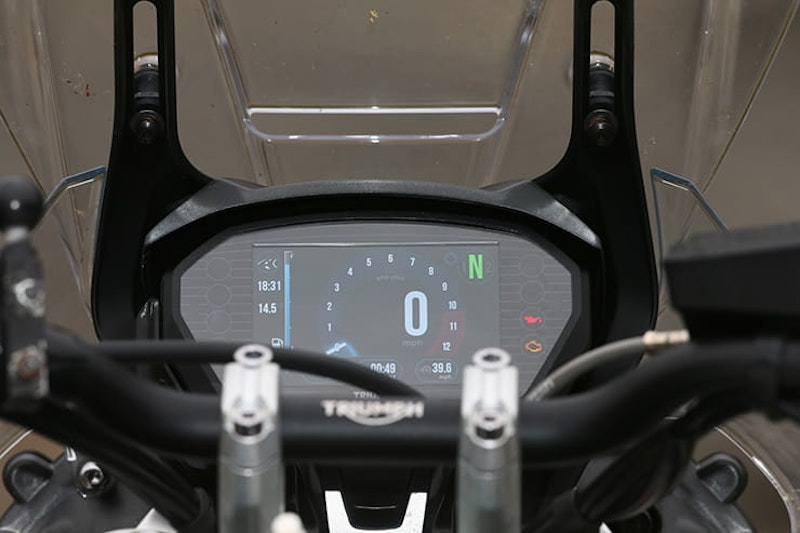

It’s a win. The XCa is the top of the Tiger line, and comes with a long list of goodies. First up is the new-for-2018 5in TFT dash, adjustable for angle to stop glare. It also has six different display configurations and auto contrast sensing. And it looks classy. The motor has six different rider modes: straight road (road), wiggly road (sport), a rain cloud (wet), a helmet (custom) and mountains and really big mountains (two off-road modes). Swapping between them can be either by button or a little joystick, which also navigates various trip and settings options. There’s a lot to be playing with.

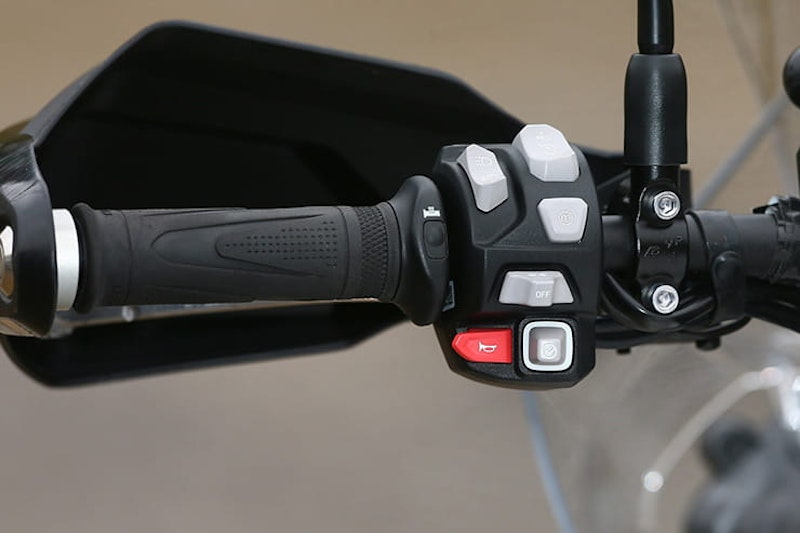

But ride the Triumph at night and you’ll notice the full LED lights, but especially the backlit switchgear, which is so useful it’s bewildering it wasn’t standard 20 years ago. And in the chilly bits you note the heated grips. And a heated rider and pillion seat. And then a centrestand. And cruise control. And a USB socket as well as  12v socket – which has enough juice to run a heated jacket (eh, BMW?).



2018 Triumph Tiger 800 XCa verdict

Triumph claim 200 updates for the 2018 Tiger 800 over the 2017 model – which might sound impressive (which is why they said it) – but it’s worth noting that your average bike is made up of around 3000 components. Which means by their own maths, Triumph’s 2018 Tiger 800 is 93% the same as last year.

It is, however, more than 7% better. Work that one out.



Triumph Tiger 800 XCa (2018) | UK Road and Off Road Review



Three things I loved about the Tiger 800 XCa

• comfort – top class, genuine long distance ability

• engine – more fun than a ploddy old twin (unless it’s significantly bigger, ahem)

• handling ­– basically, it feels like a road bike



Three things that I didn’t…

• tank range could be better

• er... the pillion footpegs are naff

• ...could look a bit more finished?



2018 Tiger 800 XCa SPEC

New price

£12,450

Capacity

800cc

Bore x Stroke

74.05 x 61.9mm

Engine layout

inline triple

Engine details

12v DOHC, l/c

Power

94bhp (70kW) @ 9500rpm

Torque

58 lb-ft (79Nm) @ 8050rpm

Top speed

140mph (est)

Average fuel consumption

48.5mpg tested

Tank size

19 litres

Max range to empty (theoretical)

202 miles

Rider aids

6 rider modes, TC, ABS

Frame

tube steel trellis

Front suspension

43mm WP usd

Front suspension adjustment

rebound and compression damping

Rear suspension

WP rising rate monoshock

Rear suspension adjustment

preload and rebound damping

Front brake

2 x 305mm discs, Brembo two-pot sliding calipers

Rear brake

255mm disc, Nissin and one-pot sliding caliper

Front tyre

90/90-21 Bridgestone Battle Wing

Rear tyre

150/70 R17 Bridgestone Battle Wing

Rake/Trail

23.4°93.5mm

Dimensions

2215mm x 795mm x 1350mm (LxWxH)

Wheelbase

1545mm

Seat height

840-860mm

Kerb weight

231kg

Warranty

unlimited miles / 2years

Website

www.triumphmotorcycles.co.uk
